N208A MAR

Name: N208A MAR
Brand: Marathon Electric Motors
SKU: N208A MAR
Availability: OutOfStock

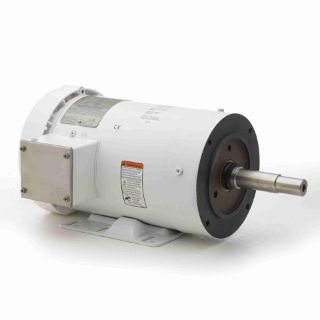

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

N208A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TTWW16005

Features

Motors are suitable for 10:1 VT and 10:1 CT MAX GUARD® Class F insulation system 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power Double sealed ball bearings 303 Stainless steel shaft with spring loaded contact seals in each endshield Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance Plugged drain holes in each endshield for all angle mounting Internal corrosion resistant coatings on frame, base, endshields, rotor and stator F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	16.63
CE:	Y
Connection Drawing Number:	005010.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	12.0/6.0
DE Bearing Size:	6207
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	9.5
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	JM
Frame Type:	184JM
Frequency:	60
HP:	5
Insulation Class:	F
IP Code:	55
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	Rigid base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	BALL
Outline Drawing Number:	035480-950
Phases:	3
Power Factor:	89.5
Power Rating (HP):	5
Power Rating (kW):	3.7
Resistance Main:	2.32
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	4.25
Shaft Type:	JM
Speed:	3495
Speed Max:	3495
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
