N210 MAR

Name: N210 MAR
Brand: Marathon Electric Motors
SKU: N210 MAR
Availability: OutOfStock

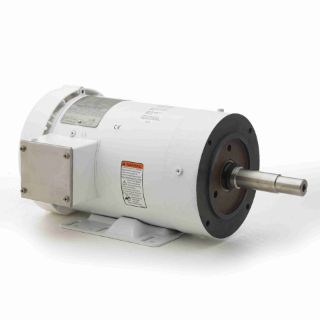

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

N210

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TTWW14004

Features

303 Stainless steel shafts with spring loaded contact seals in each endshield 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power Double sealed ball bearings Internal corrosion resistant coatings on frame, base, endshields, rotor and stator UL Recognized, CSA Certified and CE Mark

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	17.63
CE:	Y
Connection Drawing Number:	005010.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	16.8/8.4
DE Bearing Size:	6207
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	88.5
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	1.5
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	JM
Frame Type:	184JM
Frequency:	60
HP:	7.50
Insulation Class:	F
IP Code:	55
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	035480ME-1050
Phases:	3
Power Factor:	94.5
Power Rating (HP):	7.50
Power Rating (kW):	5.6
Resistance Main:	.27
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.880
Shaft Extension:	4.25
Shaft Type:	JM
Speed:	3505
Speed Max:	3505
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
