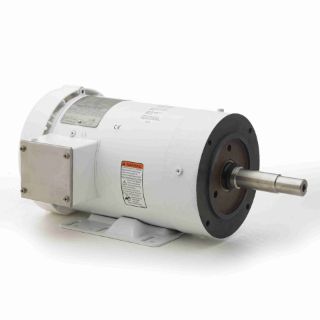

N212A MAR

Name: N212A MAR
Brand: Marathon Electric Motors
SKU: N212A MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

N212A

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

215TTWWD16005

Features

Motors are suitable for 10:1 VT and 10:1 CT MAX GUARD® Class F insulation system 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power Double sealed ball bearings 303 Stainless steel shaft with spring loaded contact seals in each endshield Stainless steel conduit box cover, nameplate, fan guard (TEFC) and hardware Cast oversized conduit box with high temperature nitrile gaskets and threaded entrance Plugged drain holes in each endshield for all angle mounting Internal corrosion resistant coatings on frame, base, endshields, rotor and stator

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	21.40
CE:	Y
Connection Drawing Number:	005010.01
Country of Origin:	Mexico
CSA:	Y
Current:	23.6/11.8
DE Bearing Size:	6309
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Totally Enclosed Fan Cooled
Frame Length (IN):	11.15
Frame Material:	Rolled Steel
Frame Size:	215
Frame Suffix:	JM
Frame Type:	215JM
Frequency:	60
HP:	10
Insulation Class:	F
IP Code:	55
KVA Code:	H
Max Ambient:	40°C
Motor Orientation:	HORIZONTAL
Mounting Type:	Rigid base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6206
ODE Bearing Type:	BALL
Outline Drawing Number:	038051-1115
Phases:	3
Power Factor:	87.9
Power Rating (HP):	10
Power Rating (kW):	7.5
Resistance Main:	.8
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.000
Shaft Extension:	4.50
Shaft Type:	JM
Speed:	3525
Speed Max:	3525
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	230/460
