N282 MAR

Name: N282 MAR
Brand: Marathon Electric Motors
SKU: N282 MAR
Availability: OutOfStock

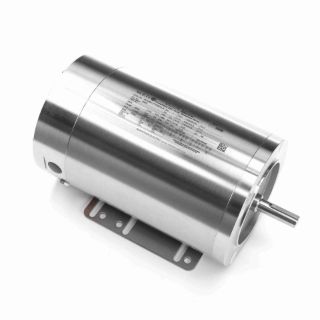

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

N282

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

056C17V5301

Features

Encapsulated electronic starting switch is impervious to moisture Capacitor start induction run design for high starting torque Double sealed ball bearings with moisture resistant, high temperature grease 303 stainless steel shaft with spring loaded contact seals in each end 300 Series Stainless steel external construction: frame, endshields, conduit box, fan guard, mounting base and hardware for superior corrosion resistance Internal corrosion resistant coatings on rotor and heavy polyester varnish on the stator 100% Paint-free construction, 56H, 143T, and 145T combination base with 12 mounting holes Viton® o-rings, shaft seals, and gaskets for superior sealing against chemicals Hydrophobic breather in OP endshield and conduit box equalize air pressure Totally enclosed, non-ventilated

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	12.70
CE:	Y
Connection Drawing Number:	005278.01ME
Country of Origin:	United States of America
CSA:	Y
Current:	6.8/3.5-3.4
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	74
Electrical Type:	Capacitor Start Induction Run
Enclosure Type:	Totally Enclosed Non Ventilated
Frame Length (IN):	8.
Frame Material:	Stainless Steel
Frame Size:	56
Frame Suffix:	HC
Frame Type:	56HC
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.50
Insulation Class:	F
IP Code:	55
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	L
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	034991ME-800
Phases:	1
Power Factor:	64
Power Rating (HP):	0.50
Power Rating (kW):	0.37
Resistance Main:	3.55
Rotation:	Selective Counterclockwise
Service Factor:	1.15
Shaft Diameter (IN):	0.625
Shaft Extension:	1.94
Shaft Type:	NEMA 56
Speed:	1725
Speed Max:	1725
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	115/208-230
