N7899-W LEV

Product Details

Manufacturer part number:
N7899-W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Duplex

Description

Slim is in. New SmartlockPro slim GFCIs install easily industry-leading quality, professional grade lockout action, and the slimmest profile on the market make SmartlockPro slim GFCIs the smartest choice in ground fault circuit interrupter protection. Faster and easier to install in any wallbox because depth is reduced, the slim GFCIs flush mount to the wall with minimal protrusion for a sleek, finished look. Enhanced features include external back wiring for positive indication the wire is properly seated, exceptional resistance to wire pullout and the ability to withstand high torque.

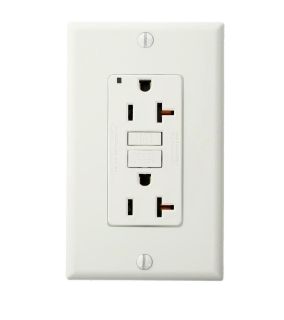

SmartlockPro® GFCI Receptacle, Duplex, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -35 to 66 deg C, Screw Terminal, Polycarbonate, White, 4.21 in H x 1.69 in W x 1.32 in D Dimensions

Application

Commercial Applications

Standards

ANSI C-73 | CSA C22.2 File No. 42 144.1-06 | CSA File No. LR57811 | NEMA WD-6 | NOM 057 Certified | UL 498 | UL 943 File No. E48380 | UL 94 V-2 Flammability Rated | CSA C22.2 File No. 42

Features

  • Reduced depth of SmartLockPro® Slim GFCI makes it easier to install in any electrical box, even shallow ones
  • Terminals allow for easy wiring options back and Side wire capable
  • External Back-wire clamps provide visual indication of proper wire seating
  • Withstands high torque and resists wire pullout
  • Standard brass self-grounding clips
  • Automatically test the GFCI every time the RESET button is pushed in the GFCI will not reset if the GFCI circuit is not functioning properly
  • By blocking reset of the GFCI if protection has been compromised, SmartlockPro Slim GFCI reduces the possibility of end-users incorrectly assuming that a reset GFCI outlet is providing ground fault protection when it actually is not
  • A line load reversal diagnostic feature is provided which prevents the GFCI from being reset and stops power from being fed to the GFCI receptacle face or through to downstream devices
  • A green LED indicator on the GFCI face also illuminates to alert the installer to the line load wiring reversal
  • Trip threshold meets or exceeds UL requirements for tripping time
  • Improved immunity to high frequency noise reduces nuisance tripping
  • Advanced electronics design provides superior resistance to electrical surges and over-voltages
  • Compatible with all Decora® devices and wallplates available in select Decora® colors
  • Wallplate mount
  • Non-tamper-resistant
  • 1250 VAC (min) dielectric strength
  • UL 94V-2 flammability rated
  • Residential grade
  • Galvanized steel strap, LED indicator light, feed-through, back and Side wire connection
  • 14 to 10 AWG

Includes

Wallplate/Faceplate and Self-Grounding Clip

Specifications

Amperage Rating:20 A
Color:White
Country of Origin:CN
Dimensions:4.21 in H x 1.69 in W x 1.32 in D
Grade:Commercial
Horsepower:1 hp
Material:Polycarbonate
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-35 to 66 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
