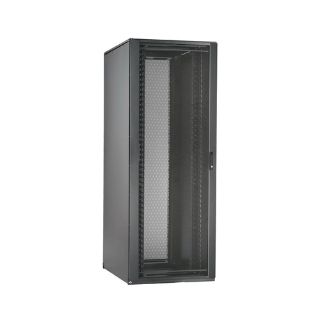

N8222BSPABCF119 PAN

Name: N8222BSPABCF119 PAN
Brand: Panduit
SKU: N8222BSPABCF119 PAN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

N8222BSPABCF119

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Panduit®

Type

N-Type Standard

Description

Net-Access™ N-Type Cabinets are the first choice for data center managers and systems integrators specifying high density network, storage and compute applications that require optimal thermal management and the capacity to manage high cable densities. Integral cabinet air seal features and integration with passive hot and cold air containment components drive efficient utilization of cooling capacity and reduce cooling energy consumption. The Net-Access™ inset frame design efficiently manages large quantities of cables and provides space for unmatched access reducing operational costs. This industry leading design also maximizes airflow and provides easy access to equipment for ongoing operational efficiencies, providing exceptional value in a 800 mm (31.5 in) wide enclosure.

Panduit®, N8222BSPABCF119, Network Cabinet, N-Type Standard, 800 mm Width, 1200 mm Depth, 42RU Rack Unit, 2500/3000 lb Capacity, Rack Mounting, 50 deg C, Steel, Polyester Epoxy Powder Coated, Black

Application

For applications that require maximum thermal management capability and the capacity to manage high cable densities in an 800 mm W enclosure

Standards

RoHS Compliant | EIA-310-E | TIA/EIA-942 | UL 2416

Features

Wide range of cabinet designs available for specific thermal applications, resulting in improved thermal efficiencies and reductions in energy expenditures
Integral cabinet sealing features reduce bypass air and mixing of cold air and exhaust air within the cabinet for improved
Panduit® cabinets, thermal ducting, cool boot product, blanking panels, blanking foam strips and blanking shade provide a complete thermal and sealing solution
Creates a 203 mm unobstructed channel between cabinets promoting best in class cable management, provides flexibility for switch specific thermal solutions
Innovative dual hinge door with slam latch handles provides superior access to cabinets and cabling, easing cabinet to cabinet cabling and promoting faster moves, adds and changes
Type-N cabinets can be ganged together for complete streamlined appearance improving data center
Cable management included helps speed deployment, easily adjustable rear rails can be quickly repositioned, heavy duty leveling legs can be accessed from top or bottom for faster deployment
Fulfills Cisco switch side clearance requirements for increased network reliability and proper thermal management
Cabinets and accessories are single point bonded, providing a safe and reliable network while reducing installation costs
Provides bend radius control for each rack unit and can be positioned where required on cabinet posts for cable protection for increased network availability, provides design flexibility, scalability and improved aesthetics for easier moves, adds and changes
Multiple cabinet configurations for hot aisle/cold aisle, cold aisle containment or vertical exhaust ducting deployments
Provides optimal and discreet channels for managing and protecting cables contributing to increased network availability
Cabinets are powder coated in a durable, low maintenance polyester epoxy paint
Without doors

Includes

(2) SN25F 6 in Cable Management Fingers, #12-24 x M6 Screws, #12-24 Tapped Equipment Rails

Specifications

Capacity:	2500/3000 lb
Color:	Black
Depth:	1200 mm
Finish:	Polyester Epoxy Powder Coated
Lock:	Quarter-Turn Latch
Material:	Steel
Mounting Type:	E-Rail/Floor
Rack Unit:	42RU
Series:	N Series
Temperature Rating:	50 deg C
Width:	800 mm
