NA2201-2RSR INA

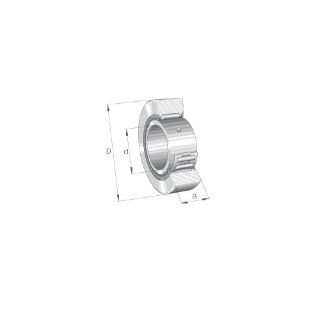

INA NA2201-2RSR NA22..-2RSR Yoke Track Roller, 12 mm Dia Bore, 32 mm Dia x 13.8 mm W Roller, 7500 N Dynamic/8300 N Static/1270 N Fatigue Load, Steel Roller
Manufacturer: INA
Manufacturer part number: NA2201-2RSR
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 8 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$79.66

Product Details

Brand Name

INA

Type

Yoke

Description

INA Track Roller, Yoke, Series: NA22..-2RSR, 12 mm Bore, 32 mm Roller Diameter, 13.8 mm Roller Width, 14 mm Overall Width, 7500 N Dynamic/8300 N Static/1270 N Fatigue Load, Double Seal Closure, 4700 rpm Maximum, -30 to 120 deg C, Steel Roller, Uncoated

Features

  • Without axial guidance
  • Lip seals on both sides

Specifications

Bore Diameter:12 mm
Closure Type:Double Seal
Finish:Uncoated
Load Capacity:7500 N Dynamic/8300 N Static/1270 N Fatigue
Maximum Speed:4700 rpm
Overall Width:14 mm
Roller Diameter:32 mm
Roller Material:Steel
Roller Width:13.8 mm
Series:NA22..-2RSR
Temperature Rating:-30 to 120 deg C
