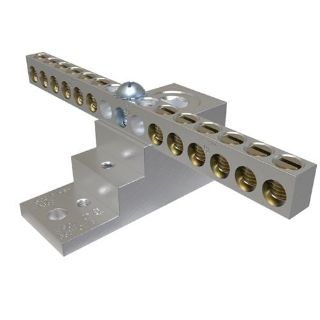

Actual Product May Vary From Image

NB-350-12 ILS

Name: NB-350-12 ILS
Brand: Ilsco
SKU: NB-350-12 ILS
Price: 86.48 USD
Availability: InStock

ILSCO® ClearChoice® NB-350-12 Dual Rated Mechanical Neutral Bar, 4.7188 in L x 2.5313 in W x 1.54 in H, 2000 VAC

Manufacturer: Ilsco

Manufacturer part number: NB-350-12

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$86.48

Qty:

Product Details

Brand Name

ILSCO®

Type

Dual Rated

Description

ILSCO® ClearChoice® Mechanical Neutral Bar, Dual Rated, Series: NB Series, 2.5313 in Bar Width, 4.7188 in Bar Length, 1.54 in Bar Height, 2000 VAC, 14 to 4 AWG Cable Tap, 6 AWG to 350 kcmil Cable Main, 12 Tap Quantity, 2 Mounting Hole Quantity, Aluminum, Electro-Plated Tin

Application

For tap connector

Standards

CSA LR-29601 | UL 486A/B | E6207 | UL Recognized | PROP65: it is not known to contain any chemicals associated with this regulation

Features

Preassembled, stacked neutral bars
Available with phenolic base
Fabricated from high strength 6061-T6 aluminum alloy
Compact, space saving design offers multiple range taking flexibility and is suitable for grounding applications
Provides insulation from mounting surface
Provides low contact resistance
Suitable for use with either copper or aluminum conductors
Slot tap hex size
3/8 in main hex size
10 to 32 tapped mounting holes

Specifications

Bar Height:	1.54 in
Bar Length:	4.7188 in
Bar Width:	2.5313 in
Cable Main:	6 AWG to 350 kcmil
Cable Tap:	14 to 4 AWG
Country of Origin:	MX
Finish:	Electro-Plated Tin
Material:	Aluminum
Mounting Hole Quantity:	2
Series:	NB Series
Tap Quantity:	12
Voltage Rating:	2000 VAC
