Actual Product May Vary From Image

NCMB075-0100S SMC

Name: NCMB075-0100S SMC
Brand: SMC
SKU: NCMB075-0100S SMC
Price: 18.40 USD
Availability: InStock

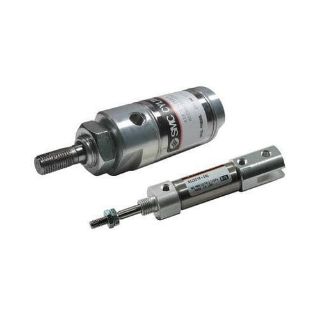

SMC® NCMB075-0100S NCM Repairable Round Body Single Rod Cylinder, 3/4 in Cylinder Bore, 1 in L Stroke, Single Acting Cylinder Action, Nose Mounting

Manufacturer: SMC

Manufacturer part number: NCMB075-0100S

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
13	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$18.40

Qty:

Product Details

Brand Name

SMC®

Type

Repairable Round Body Single Rod

Description

SMC®, NCMB075-0100S, Cylinder, Repairable Round Body Single Rod, Series: NCM, 3/4 in Cylinder Bore, 1 in Stroke Length, Single Acting Cylinder Action, 1/8 in NPT Port, 1/4-28 Rod Thread, 250 psi Pressure, 40 to 140 deg F, Nose Mounting, Stainless Steel, 0.86 in W x 3.19 in L Dimensions

Standards

RoHS Compliant

Features

Single acting single rod, spring return or spring extend
Maximum stroke up to 6 in as standard
Available with auto switches

Specifications

Country of Origin:	US
Cylinder Action:	Single Acting
Cylinder Bore Size:	3/4 in
Dimensions:	0.86 in W x 3.19 in L
Material:	Stainless Steel
Mounting Type:	Nose
Port Size:	1/8 in NPT
Pressure Rating:	250 psi
Rod Thread Size:	1/4-28
Series:	NCM
Stroke Length:	1 in
Temperature Rating:	40 to 140 deg F
