Guardrails are an important addition to your plant floor to protect structural platforms, in-plant offices, conveyors, water mains, valuable equipment, and, most importantly, workers. Heartland Engineered Products Saf-T-Rail is easy to install and comes with all hardware included. Designed to ASIC specifications, this safety guardrail comes in a bright, OSHA yellow finish. This guardrail has a 10,000 pound load at 4 mph rating, making it the ideal solution for heavy-duty protection applications.

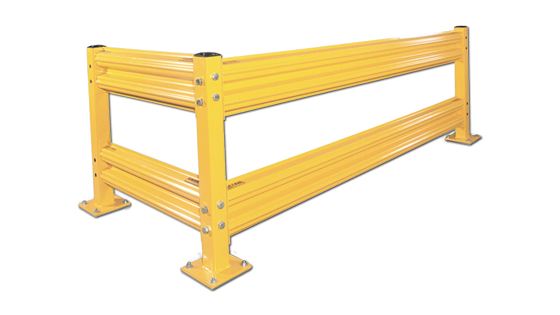

Saf-T-Rail Specifications
- Columns are 4″ x 4″ square tube manufactured from high strength steel.
- Baseplate is 10″ x 10″ square x 5/8″ thick steel, and can be offset if needed.
- Rails are 10 gauge high-tensile steel formed into a two rib corrugated design with two secondary ribs.
- Anchors are 5-1/2″ screw anchors and hardware is A325 1/2″.
- Triple, double, and single rail applications available.
- Lift out rail available for quick access to equipment.
- Rails available in lengths starting at 3′ through 10′ long.
- Easy installation with universal column, all hardware included.
