NJ2311-E-XL-TVP2-QP51-C4 FAG

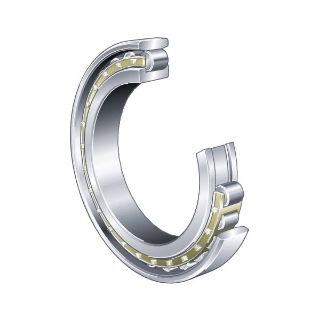

Picture of NJ2311-E-XL-TVP2-QP51-C4 FAG
Actual Product May Vary From Image

Product Details

Manufacturer:
INA
Manufacturer part number:
NJ2311-E-XL-TVP2-QP51-C4
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$427.42 / EA

Description

Brand Name

FAG

Type

Separable

Description

Bearings of type NJ have two rigid ribs on the outer ring and one rigid rib on the inner ring. With these cylindrical roller bearings, axial displacements of the shaft relative to the housing are possible in one direction only. The maximum axial displacement s is given in the product tables. Bearings of type NJ are used as semi-locating bearings, i.e. they can guide the shaft axially in one direction. Semi-locating bearings NJ can be combined with an L-section ring HJ to form a locating bearing unit.
FAG Cylindrical Roller Bearing, Separable, Series: NJ23-E, 55 mm Bore, 120 mm OD, 1 Rows, 43 mm Width, 235000 N Load, Polyamide Cage, 7000 rpm Maximum, -30 to 120 deg C

Features

  • Bearing arrangements are subjected to very high radial loads
  • Not only high radial forces but also axial loads from one or both directions must be supported by the bearing position
  • Bearing arrangements must have very high rigidity
  • Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
  • High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required
  • Semi-locating bearing function
  • Increased capacity design
  • X-life design
  • Solid window cage made from glass fiber reinforced polyamide PA66
  • C4 radial internal clearance
  • 235000 N dynamic/230000 N static

Specifications

Bore Diameter:55 mm
Cage Material:Polyamide
Country of Origin:DE
Load Capacity:235000 N
Maximum Speed:7000 rpm
Number of Rows:1
Outside Diameter:120 mm
Series:NJ23-E
Temperature Rating:-30 to 120 deg C
Width:43 mm

Products Specifications

Brand Name
FAG Bearings
