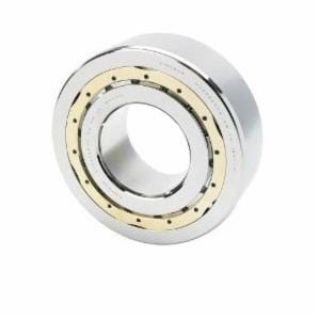

NJ248EMAC3 TKN

Name: NJ248EMAC3 TKN
Brand: Timken
SKU: NJ248EMAC3 TKN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

NJ248EMAC3

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Timken®

Type

Enhanced Geometry Type NJ

Description

A radial cylindrical roller bearing consists of an inner and/or outer ring and a complement of controlled-contour cylindrical rollers. Depending on the style of bearing, either the inner or the outer ring will have two roller-guiding ribs. The other ring, separable from the assembly, has one rib or none. The ring with two ribs axially locates the position of the roller assembly. The diameters of these ribs may be used to support the roller. One of the ribs may carry light thrust loads when an opposing rib is provided in the mating ring.

Timken® Radial Cylindrical Roller Bearing, Enhanced Geometry Type NJ, 240 mm Bore Dia, 440 mm Outside Dia, Single Rows, 72 mm Width, 1250 kN Dynamic/1570 kN Static, Brass Cage, 1100/1300 rpm Maximum, 302 deg F

Application

Power Generation, Oil Fields, Crop Shears, Gear Drives, Hoists, Metals Construction, Mining, Aggregate Processing, Pumps, Rolling Mills, Wheel-End Planetaries, Wind Energy and Other Industrial Equipment

Standards

DIN Certified

Features

Single-piece, land-riding, machined-brass cage
C3 standard radial internal clearance

Specifications

Bore Diameter:	240 mm
Cage Material:	Brass
Load Capacity:	1250 kN Dynamic/1570 kN Static
Maximum Speed:	1100/1300 rpm
Number of Rows:	Single
Outside Diameter:	440 mm
Temperature Rating:	302 deg F
Width:	72 mm
