Actual Product May Vary From Image

NK45/20-TV-XL INA

Name: NK45/20-TV-XL INA
Brand: INA
SKU: NK45/20-TV-XL INA
Price: 52.04 USD
Availability: InStock

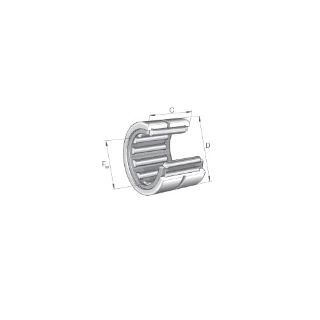

INA NK45/20-TV-XL NK Series Precision Needle Roller Bearing, 45 mm Dia Bore, 55 mm OD, 1 Row, 20 mm W, 35000 N Dynamic/62000 N Static/10800 N Fatigue Load

Manufacturer: INA

Manufacturer part number: NK45/20-TV-XL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$52.04

Qty:

Product Details

Brand Name

INA

Description

INA Precision Needle Roller Bearing, Series: NK Series, 45 mm Bore Dia, 55 mm Outside Dia, 1 Row, 20 mm W, Open Closure, 35000 N Dynamic/62000 N Static/10800 N Fatigue, Steel Cage, 10200 rpm Maximum

Features

Without inner ring
Ground raceways with ribs
Cage guided rollers
Through hardened machined and ground raceways with cage and roller complements
Retainer guides needles providing full length roller contact for maximum capacity, low friction and long life
Design series exist to match ISO, DIN, popular metric and inch dimension series
Location hole and groove in outer ring

Specifications

Bore Diameter:	45 mm
Cage Material:	Steel
Closure Type:	Open
Load Capacity:	35000 N Dynamic/62000 N Static/10800 N Fatigue
Maximum Speed:	10200 rpm
Number of Rows:	1
Outside Diameter:	55 mm
Series:	NK Series
Width:	20 mm
