NLN175 LIT

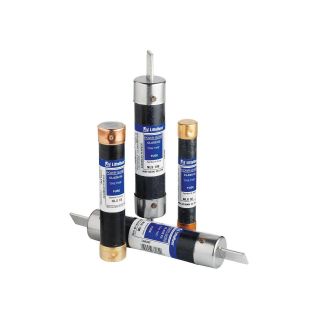

Littelfuse® POWR-GARD® NLN175 Fast Blow One Time Fuse, 175 A, 250 VAC/VDC, 50 kA Interrupt, Class: K5, Cartridge Body
Manufacturer: Littelfuse
Manufacturer part number: NLN175
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$106.20

Product Details

Brand Name

Littelfuse®

Type

Fast Blow

Description

NLN series fuses provide low cost protection for general purpose feeder and branch circuits when available short circuit currents are less than 50000 A. They replace all Class H fuses which have only a 10000 A interrupting rating. They are suitable for use in many residential and smaller commercial and industrial applications. NLKP series fuses are Canadian "Code" fuses specifically designed to meet Canadian electrical code type P fuse requirements for residential use. They have a 10000 A interrupting rating. However, to obtain the added benefits of time delay, current limitation and higher interrupting rating, consider the use of POWR-PRO® IDSR Indicator fuses for circuits between 250 and 600 V. The user gets all the benefits of time delay RK5 fuses plus the added benefits of a n indicating fuse that tells when it has opened. complete information on these fuses may be found in the POWR-PRO® section of this catalog. for circuits upto 250 V, see FLNR fuses in this section of the catalog.
Littelfuse® POWR-GARD® One Time Fuse, Fast Blow, Series: NLN, Non-Indicating, 175 A, 250 VAC/VDC, 50 kA Interrupt, Class: K5, 50/60 Hz Frequency, Knife Blade Terminal, Holder Mounting, Cartridge Body, Single Element, 1-9/16 in Dia x 7-1/8 in L Body

Application

General Purpose Residential and Commercial Circuits with Little or No Motor Load Applications

Standards

UL E81895 | CSA LR29862, Standard 248-9

Features

  • For use in applications where lowest initial cost is the major consideration
  • Economical
  • 50 kA at 250 VAC (rms symmetrical) and 50 kA at 250 VDC interrupt rating
  • Safety - 50000 A.I.R., Class K5 adequate interrupting capacity for residences and many smaller facilities

Specifications

Amperage Rating:175 A
Body Size:1-9/16 in Dia x 7-1/8 in L
Body Type:Cartridge
Class:K5
Country of Origin:MX
Element:Single
Frequency Rating:50/60 Hz
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:50 kA
Mounting Type:Holder
Series:NLN
Terminal Type:Knife Blade
Voltage Rating:250 VAC/VDC
