NMK015PDCN HMD

Name: NMK015PDCN HMD
Brand: Hammond Power Solutions
SKU: NMK015PDCN HMD
Availability: OutOfStock

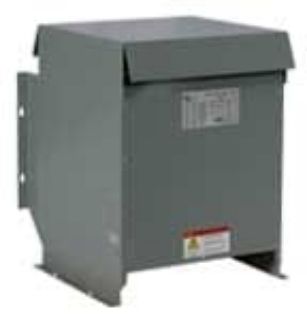

Actual Product May Vary From Image

Product Details

Manufacturer:

Hammond Power Solutions

Manufacturer part number:

NMK015PDCN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

HPS

Type

Energy Efficient General Purpose

Description

HPS Sentinel® general purpose distribution transformers are rated for 600 VAC and below. They are generally used for supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems. For non-linear loads, all standard energy efficient distribution transformers have to be derated to allow for additional heat due to harmonic losses.

HPS Sentinel® Distribution Transformer, Energy Efficient General Purpose, 600Y VAC Primary, 240 Delta VAC Secondary, 15 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor/Wall Mounting, 220 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, 97 % Efficiency, 20.2 in L x 19.38 in W x 21.5 in H Dimensions

Application

For supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems

Standards

RoHS Compliant | UL File No. E112313 | CSA File No. LR3902

Features

Meets DOE 10 CFR part 431 (TP1) and C802.2 efficiencies in an outdoor enclosure and the following efficiency standards Canadian energy efficiency regulations SOR/94-651 (and/or CSA C802/2) efficiencies calculated at 35% of rated load
Efficiencies are calculated under a linear load profile
Smaller kVA sizes have standard input and/or output lugs, knockouts and wall mounting brackets to save installation costs

Specifications

Connection Type:	Lug/Pad
Dimensions:	20.2 in L x 19.38 in W x 21.5 in H
Efficiency:	97 %
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Insulation:	220 deg C
Mounting Type:	Floor/Wall
Phase:	3
Power Rating:	15 kVA
Primary Voltage:	600Y VAC
Secondary Voltage:	240 Delta VAC
Temperature Rating:	30 to 40 deg C
