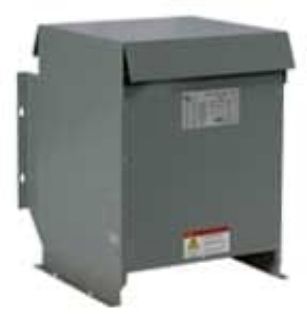

NMK015PKCN HMD

Name: NMK015PKCN HMD
Brand: Hammond Power Solutions
SKU: NMK015PKCN HMD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hammond Power Solutions

Manufacturer part number:

NMK015PKCN

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

HPS

Type

Energy Efficient General Purpose

Description

HPS Sentinel® Distribution Transformer, Energy Efficient General Purpose, 600 Delta VAC Primary, 480Y/277 VAC Secondary, 15 kVA, 60 Hz, 3 Phase, Lug/Pad, Floor/Wall Mount, NEMA 3R, 30 deg C, 28.75 in H x 23.9 in W x 25 in D

Application

For supplying appliance, lighting, heating, motorized machine and power loads from electrical distribution systems

Standards

UL Listed | CSA Certified | RoHS Compliant

Features

Efficiencies and load losses will be calculated at temperature reference of 75 deg C at unity power factor (UPF)
They are either ventilated, totally enclosed
Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation
High grade non-aging, fully processed silicon steel laminations or better core
Copper or aluminum windings, with terminations brazed, welded or bolted coil
Front accessible separate grounding, separate high and low voltage terminations with either lugs or pads
ANSI 61 UL 50 gray enclosure finish
40 deg C maximum

Specifications

Connection Type:	Lug/Pad
Dimensions:	28.75 in H x 23.9 in W x 25 in D
Enclosure Type:	NEMA 3R
Frequency Rating:	60 Hz
Mounting Type:	Floor/Wall
Phase:	3
Power Rating:	15 kVA
Primary Voltage:	600 Delta VAC
Secondary Voltage:	480Y/277 VAC
Temperature Rating:	30 deg C
