NO.663-R BSF

Name: NO.663-R BSF
Brand: Bussmann
SKU: NO.663-R BSF
Price: 70.37 USD
Availability: OutOfStock

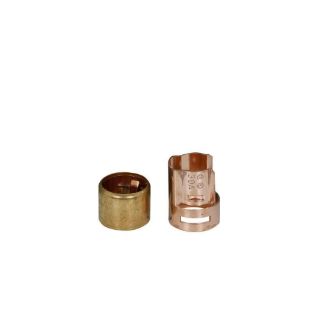

Bussmann NO.663-R Non-Indicating Rejection Fuse Reducer, 600 V, 60 A, Class: R, 30 A Fuse

Manufacturer: Bussmann

Manufacturer part number: NO.663-R

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$70.37

Qty:

Product Details

Brand Name

Bussmann

Type

Non-Indicating Rejection

Alternate Supplier #

Grainger - 1DX81

Description

A range of Bussman series fuse reducers for class H(K), J and R ferrule and blade fuses. fuse reducers install on fuse ferrules or blades to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed.

Bussmann Fuse Reducer, Non-Indicating Rejection, 60 A, 600 V, Class: R, 30 A Fuse

Application

Electrical Assemblies, Panels and EOEMs Applications

Standards

CSA 622501 | UL File No. 47235 | UL File No. E12853 | UL Guide IZZR

Features

For use with FRN-R, LPN-RK, FRS-R, LPS-RK KTN-R, KTS-R series class R ferrule and blade end fuses
Allows 1 to 30 A fuse to fit 60 A fuse block
Reducers fit into most panels or switches including the dead front type
Strong contact is maintained both mechanically and electrically
There are no reducers for switching from one class to another
Short circuit current rating (SCCR) up to fuse interrupt rating
For used to permit the application of smaller size fuses than those for which the fuse blocks or holders are designed

Specifications

Amperage Rating:	60 A
Class:	R
Country of Origin:	MX
Fuse Block Size:	60 A
Fuse Size:	1 to 30 A
Voltage Rating:	600 V
