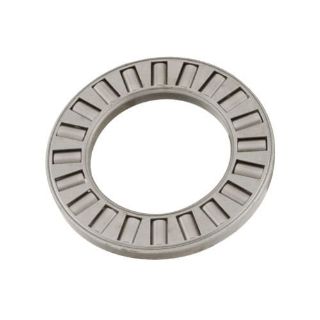

Actual Product May Vary From Image

NTA-411 KOY

Name: NTA-411 KOY
Brand: Koyo Bearings
SKU: NTA-411 KOY
Price: 2.58 USD
Availability: OutOfStock

Koyo NTA-411 Inch Series Caged Round Bore Single Row Thrust Needle Roller and Cage Assembly, 1/4 in Dia Bore, 11/16 in OD, 0.0781 in W, 1/4 in Dia Shaft, High Carbon Chrome Steel Bearing/Carbon Steel Cage

Manufacturer: Koyo Bearings

Manufacturer part number: NTA-411

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.58

Qty:

Product Details

Brand Name

Koyo

Type

Caged Round Bore Single Row

Description

Thrust Needle Roller and Cage Assemblies are the complements of small diameter needle rollers, arranged in spoke-like configuration. Needle rollers are equally spaced means of cage, its web section separates the rollers and provides guidance to keep them tracking in an orbital path. The purpose of these assemblies is to transmit a thrust load between two relatively rotating objects while greatly reducing friction. Thrust Needle Roller and Cage Assemblies also can be utilized with lipped washer to serve as raceway surface for the needle rollers. Washers can be supplied separately or can be mechanically unitized to the Thrust Needle Roller and Cage Assemblies for ease of handling.

Koyo Thrust Needle Roller and Cage Assembly, Caged Round Bore Single Row, Series: NTA Inch Series, 1/4 in Bore, 11/16 in OD, 0.0781 in Width, For Shaft Diameter: 1/4 in, 5.12 kN Dynamic/10.76 kN Static Load, High Carbon Chrome Steel Bearing/Carbon Steel Cage, 26000 rpm Oil Maximum, -30 to 110 deg C

Application

Automotive, Automatic and Manual transmissions, Agricultural, Construction Equipment, Automotive Accessories (Steering Gears and Compressors and More)

Standards

ABEC1

Features

One-way fool-proof assembly features, anti-rotation locking features and lubrication flow enhancements
Best used for high axial loads that require a thin cross section
High speed performance and application flexibility

Specifications

Bore Diameter:	1/4 in
For Shaft Diameter:	1/4 in
Load Capacity:	5.12 kN Dynamic/10.76 kN Static
Material:	High Carbon Chrome Steel Bearing/Carbon Steel Cage
Maximum Speed:	26000 rpm Oil
Outside Diameter:	11/16 in
Series:	NTA Inch Series
Temperature Rating:	-30 to 110 deg C
Width:	0.0781 in
