NU215 NAC

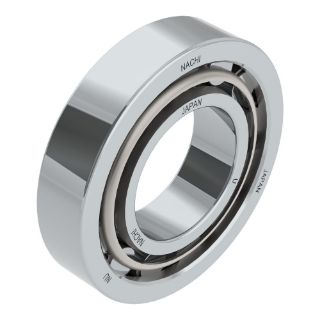

NACHI NU215 NU Series Cylindrical Roller Bearing, 75 mm Dia Bore, 130 mm OD, 1 Row, 25 mm W, 96500 N Dynamic/111000 N Static Load
Manufacturer: Nachi Bearings
Manufacturer part number: NU215
Availability: Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$229.11

Product Details

Brand Name

NACHI

Description

Cylindrical roller bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in the assembly/disassembly of components The 'NU' Type bearings has shoulders on both sides of the outer ring and no shoulder on the inner ring. This allows the shaft to move axially for thermal expansion. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in pumps, compressors, gearboxes, transmissions, rolling mills, crushers and pulverizers. This bearing is often used in high speed applications.
NACHI Cylindrical Roller Bearing, Series: NU Series, 75 mm Bore, 130 mm OD, 1 Row, 25 mm Width, Open Closure, 96500 N Dynamic/111000 N Static Load, Steel Alloy Bearing, Stamped Steel Cage, 3840 rpm Grease/4800 rpm Oil Maximum

Application

Pumps, Blowers, Speed Reducers, General Machinery, Compressors, Gearboxes, Transmissions, Rolling Mills, Crushers, Pulverizer and High Speed Applications

Features

  • Separable components simplify mounting and removal
  • Long life
  • Heavy radial load capacity
  • Not suitable for thrust loads
  • Accommodates axial expansion and contraction
  • Effective when the bearing rings require interference
  • Low friction between rollers and flanges
  • No redial load capacity due to no flange of outer or inner ring
  • Used a non-locating side
  • Inner ring without rib
  • Outer ring with ribs on both sides([JIS B 1533)

Specifications

Bearing Material:Steel Alloy
Bore Diameter:75 mm
Cage Material:Stamped Steel
Closure Type:Open
Country of Origin:JP
Load Capacity:96500 N Dynamic/111000 N Static
Maximum Speed:3840 rpm Grease/4800 rpm Oil
Number of Rows:1
Outside Diameter:130 mm
Series:NU Series
Width:25 mm
