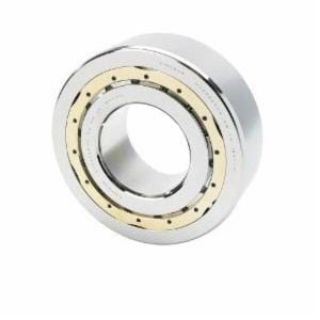

NU3034EMAC4 TKN

A radial cylindrical roller bearing consists of an inner and/or outer ring and a complement of controlled-contour cylindrical rollers. Depending on the style of bearing, either the inner or the outer ring will have two roller-guiding ribs. The other ring, separable from the assembly, has one rib or none. The ring with two ribs axially locates the position of the roller assembly. The diameters of these ribs may be used to support the roller. One of the ribs may carry light thrust loads when an opposing rib is provided in the mating ring.

Timken® Radial Cylindrical Roller Bearing, Enhanced Geometry Type NU, 170 mm Bore Dia, 260 mm Outside Dia, Single Rows, 67 mm Width, 722 kN Dynamic/1080 kN Static, Brass Cage, 1300 rpm Grease/1500 rpm Oil Maximum, 302 deg F
