NVFM250-N02-08 SMC

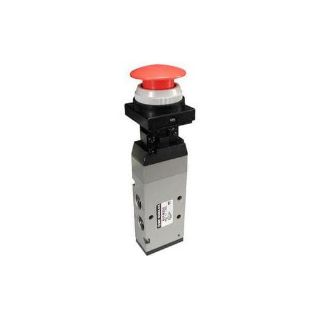

Picture of NVFM250-N02-08 SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
NVFM250-N02-08
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$52.70 / EA

Description

Brand Name

SMC®

Type

Internal Pilot

Description

SMC®, NVFM250-N02-08, Mechanical Valve, Internal Pilot, Series: NVFM, 1/4 in Nominal, NPT End Style, 0.1 to 1 MPa Pressure, -5 to 60 deg C, 1 Cv Flow Rate, 4 Ways, 2 Positions, Media: Air/Inert Gas, Toggle Actuator, Aluminum Body, Nitrile Softgoods, 40 mm H x 23 mm W x 168.9 mm L Dimensions

Standards

RoHS Compliant

Features

  • Fluid, air, inert gas
  • Operating pressure range 15 to 150 PSIG
  • Effective area (Cv) 18mm sq(1.0)
  • Maximum frequency (mechanical operation style) 300 c.p.m. or less

Specifications

Actuator Type:Toggle
Body Material:Aluminum
Country of Origin:JP
Dimensions:40 mm H x 23 mm W x 168.9 mm L
End Style:NPT
Flow Rate:1 Cv
Media:Air/Inert Gas
Nominal Size:1/4 in
Number of Positions:2
Number of Ways:4
Pressure Rating:0.1 to 1 MPa
Series:NVFM
Softgoods Material:Nitrile
Temperature Rating:-5 to 60 deg C
