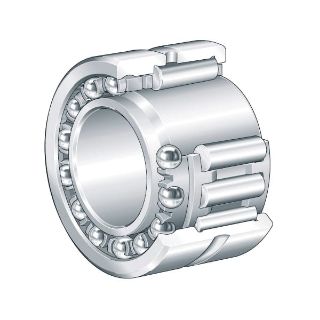

Actual Product May Vary From Image

NX30-XL INA

Name: NX30-XL INA
Brand: INA
SKU: NX30-XL INA
Price: 140.50 USD
Availability: OutOfStock

INA NX30-XL Single Direction Needle Roller/Axial Deep Groove Ball Bearing, 30 mm Dia Bore, 42 mm OD, 30 mm W, 36000 N Load

Manufacturer: INA

Manufacturer part number: NX30-XL

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$140.50

Qty:

Product Details

Brand Name

INA

Type

Single Direction

Description

Needle roller/axial deep groove ball bearings NX have a full complement ball rolling element set and an extremely low radial section height. Due to the compact radial dimensions, bearing arrangements can be achieved with very small shaft center distances, such as those that may be present in multi-spindle drilling machines. A sheet steel end cap secured to the radial bearing component grips the shaft locating washing of the axial bearing and holds the axial bearing component together. As a result, the bearings are self-retaining. The sheet metal caps for bearings NX have lubrication holes for oil lubrication.

INA Needle Roller/Axial Deep Groove Ball Bearing, Single Direction, Series: NX Series, 30 mm Bore, 42 mm OD, 30 mm Width, Open Closure, 36000 N Load, Sheet Steel Cage, 4300 rpm Maximum, -30 to 120 deg C

Features

The bearings can support high radial loads and moderate axial loads by means of a single bearing position
Suitable for applications with a very small radial design envelope, where the raceway on the shaft is designed as a rolling bearing raceway
Permit relatively high speeds, if the rolling element set in the axial bearing component is not full complement but guided by a cage
High running accuracy
Permit locating bearing arrangements with only a very small radial design envelope
Result in axially rigid bearing arrangements
Easy to mount as they are not self-retaining in many cases
Permit technically straightforward, economical and cost-effective designs
For oil lubrication
Without inner ring
Without end cap
X-life design
25500 N dynamic/36000 N static radial, 11700 N dynamic/28000 N static axial

Specifications

Bore Diameter:	30 mm
Cage Material:	Sheet Steel
Closure Type:	Open
Country of Origin:	SK
Load Capacity:	36000 N
Maximum Speed:	4300 rpm
Outside Diameter:	42 mm
Series:	NX Series
Temperature Rating:	-30 to 120 deg C
Width:	30 mm
