OF4117T BLD

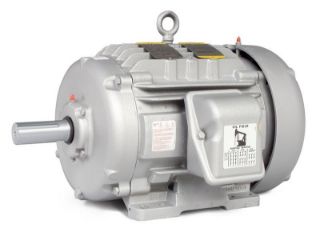

Picture of OF4117T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
OF4117T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 3 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Oil Field Pump Motors

Features

30HP,1125RPM,3PH,60HZ,326T,1262M,TEFC,F2

Specifications

Base:Rigid
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:326
Frequency Rating:60 Hz
Full Load Current:22.5 A; 39.0 A
Horsepower:30.000 hp
Insulation Class:F
Mounting:F2
NEMA Design:D
NEMA Nominal Efficincy:88.50%
Phase:Three Phase
Power Factor:83
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,125 rpm
Voltage Rating:460 V; 796 V

Resources

Spec SheetWarranty

Products Specifications

Horsepower
30 HP
