Actual Product May Vary From Image

OPM-1038R BSF

Name: OPM-1038R BSF
Brand: Bussmann
SKU: OPM-1038R BSF
Availability: InStock

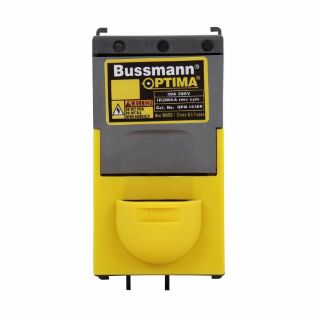

Bussmann OPTIMA® OPM-1038R Dead Front Indicating Overcurrent Protection Fuse Holder Module, 600 VAC/VDC, 30 A, 3 Poles, Class CC Fuse, 18 to 8/18 to 10 AWG Wire

Manufacturer: Bussmann

Manufacturer part number: OPM-1038R

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	26
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Dead Front Indicating Overcurrent Protection

Alternate Supplier #

Grainger - 4CX75

Description

Bussmann OPTIMA® Fuse Holder Module, Dead Front Indicating Overcurrent Protection, Series: OPM, 600 VAC/VDC, 30 A, 3 Pole, Class CC Fuse, 18 to 8/18 to 10 AWG Wire, Stranded/Solid Wire, DIN Rail/Threaded/Screw Mount, 1.76 in Width, 3.6 in Height, 3.74 in D, Thermoplastic

Application

Industrial Control, Process Control Systems, Automated Warehouse Systems, Individual Control Circuits, Electrical Assemblies, Panels and EOEMs Applications

Standards

CE Certified | CSA C22.2 File No. 39/47235 | RoHS Compliant | UL 512 File No. E14853 | UL 94 V-0 Flammability Rating

Features

"Open" fuse indication lights
Cam action handle for easy module removal
Finger safe terminals
Removable module for convenient fuse loading
35 mm DIN rail or screw panel mounting
Dead front construction

Specifications

Amperage Rating:	30 A
Country of Origin:	MX
Depth:	3.74 in
Fuse Size:	13/32 in Dia x 1-1/2 in L
Fuse Type:	Class CC
Height:	3.6 in
Material:	Thermoplastic
Mounting Type:	DIN Rail/Screw
Number of Poles:	3
Series:	OPM
Voltage Rating:	600 VAC/VDC
Width:	1.76 in
Wire Size:	18 to 8 AWG, 18 to 10 AWG
Wire Type:	Solid/Stranded
