OX-3MCG KIL

Name: OX-3MCG KIL
Brand: Killark
SKU: OX-3MCG KIL
Price: 35.67 USD
Availability: InStock

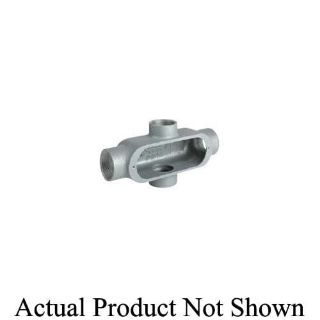

Killark® Duraloy® 5 OX-3MCG O Series Type X Conduit Body With Cover, Gasket, Stainless Steel Screw, 1 in Hub, 12 cu-in Capacity, Malleable Iron, Tri-Coated

Manufacturer: Killark

Manufacturer part number: OX-3MCG

Availability: Expected Leadtime 70 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$35.67

Qty:

Product Details

Brand Name

Killark®

Type

Type X

Description

O series conduit bodies are our most compact conduits that apply highest durability with the securest installation. The O series is available in iron and aluminum, with superior corrosive protected electrostatically applied paint.

Killark® Duraloy® 5 Conduit Body, Type X, Series: O Series, 1 in Hub, 4 Hubs, 12 cu-in Capacity, Thread Connection, Malleable Iron, Tri-Coated, Gray, 7-1/8 in L x 3-3/8 in W x 2-1/4 in H Dimensions

Application

To provide access to conductors for pulling, splicing and maintenance, threaded for rigid and IMC conduit

Standards

UL File No. E3397 | CSA File No. LR11852 | Federal Specification W-C-586D/A-A 50563 | NEC 501.10(b) Class I Div 2, 502.10, 503.10

Features

Raintight
Interchangeable with competitive products
For wet locations when used with gasketed covers
Malleable iron suitable for use in concrete
Tri-coat finish of electro-zinc, chromate sealant and electrostatically applied powder coating

Specifications

Capacity:	12 cu-in
Color:	Gray
Connection Type:	Thread
Country of Origin:	IN
Dimensions:	7-1/8 in L x 3-3/8 in W x 2-1/4 in H
Finish:	Tri-Coated
Hub Size:	1 in
Material:	Malleable Iron
Number of Hubs:	4
Series:	O Series
