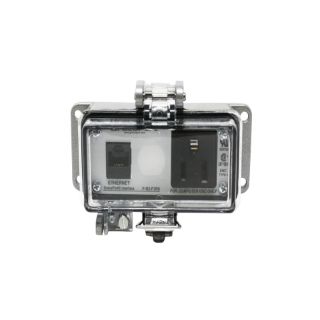

Picture of P-R2-F3R0 GEP
Actual Product May Vary From Image

P-R2-F3R0 GEP

GracePorts® P-R2-F3R0 Bulkhead Computer Port Connector Interface, Plastic Housing
Manufacturers: Grace Engineered Products , Grace Engineered Products
Manufacturer part number: P-R2-F3R0
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
1 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$182.00

Product Details

Brand Name

GracePorts®

Type

Bulkhead

Description

GracePorts® Computer Port Connector Interface, Bulkhead, Panel Mounting, 30 VDC, Cat 5e Ethernet RJ45 F/F Connector, Plastic Housing Material, 4.45 in L x 1.65 in W x 1.72 in H Dimensions

Application

Outdoor Use

Standards

UL E207344 | CSA LR110845 | RU/RoHS Compliant

Features

  • Extension cable interfaces consist of fully shielded cable assemblies panel-mounted to the housing allowing a direct and cost effective method of interfacing to computers, printers, modems and networks
  • Bulkhead interface method permits standard cable connections on both the front and the rear of the graceport unit
  • Connections are made to and from the interface by way of user supplied computer cable assemblies, printed circuit assembly
  • Low-profile circuit board interfaces simplify installation where backplane clearance is limited
  • The compact design features a data connector on the front and terminal block connections on the rear for easy wiring
  • Low voltage (data), limited to 30 VDC, high voltage supply (for computer use only)
  • 1 port
  • 16 point, NEMA 12/4, IP65, cast alloy base enclosure
  • Without circuit breaker

Specifications

Connector Type:Cat 5e Ethernet RJ45 F/F
Country of Origin:US
Dimensions:4.45 in L x 1.65 in W x 1.72 in H
Housing Material:Plastic
Mounting Type:Panel
Voltage Rating:30 VDC
