P-R2-H3R3 GEP

Name: P-R2-H3R3 GEP
Brand: Grace Engineered Products
SKU: P-R2-H3R3 GEP
Price: 208.00 USD
Availability: InStock

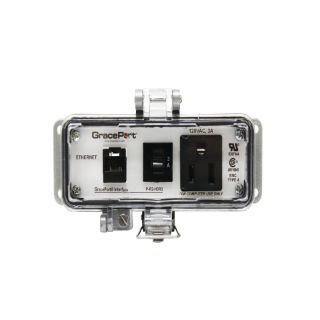

GracePorts® P-R2-H3R3 Type 4 Ethernet Port Connector, Panel Mount, Wiring Code: R2

Manufacturer part number: P-R2-H3R3

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	1	2
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$208.00

Qty:

Product Details

GracePorts®

Type 4

GracePorts® Ethernet Port Connector, Type 4, Panel Mounting, Wiring Code: R2, Category: Cat 5e

UL E207344 | CSA LR110845 | CE EN61010/EN60950 | RoHS Compliant | UR Listed

IP65 enclosure rating
Size H housing
Low voltage (data), limited to 30 VDC
High voltage supply (for computer use only) 120 VAC, 15A (UL), 5A (CSA) , 230 to 240 VAC, 16A (CE only)
Cast aluminum base housing
Type 304 stainless steel latch (1CR18NI19)
Polycarbonate, UV rated, V-O flame rated cover
Thermoplastic elastomer gasket
Acrylic UL94 HB insert
RJ45 F/F bulkhead connector
NEMA 12/4 rated housing
Simplex power
3 A circuit breaker
ThruView™ housing
1.72 in H x 5.51 in W x 1.6 in D
