P1 1 5/8 MSG

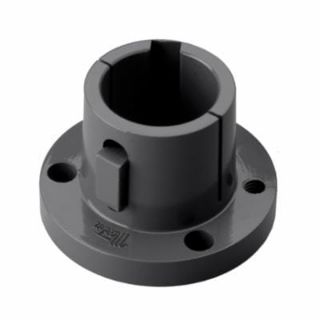

Picture of P1 1 5/8 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
P1 1 5/8
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$32.97 / EA

Description

Brand Name

Martin

Type

Standard

Description

MST® bushings are easy to install and remove. They are split through the barrel and have a taper to provide a true clamp on the shaft. They are keyed to both the shaft and the hub to help during "blind" installations.
Martin MST Bushing, Standard, 1-5/8 in Bore Dia, 1.8555 in Small End/1.9375 in Large End Barrel Dia, 3 in Hub Dia, 2.44 in Bolt Circle, 3 in Flange Dia, 0.41 in Flange Thickness, 3 Bolt Holes, 5/16-18 x 1 in Screw, For Use With: MST® Sprockets and HP1/HCP1 Weld-On Hubs, 1.94 in Overall Length, 3/8 x 3/16 in Keyway, Ductile Iron

Standards

ANSI B15.1

Features

  • Size 2/P1 bushing
  • Tolerances meet or exceed industry standards
  • Precise machining and processes ensure consistent finish and high quality
  • Interchangeable with other manufacturers’ split-taper bushings

Specifications

Barrel Diameter:1.8555 in Small End/1.9375 in Large End
Bolt Circle Diameter:2.44 in
Bore Diameter:1-5/8 in
Country of Origin:US
Flange Diameter:3 in
Flange Thickness:0.41 in
Hub Diameter:3 in
Keyway Size:3/8 x 3/16 in
Material:Ductile Iron
Number of Bolt Holes:3
Overall Length:1.94 in
Screw Size:5/16-18 x 1 in
Suitable For Use With:MST® Sprockets and HP1/HCP1 Weld-On Hubs

Products Specifications

Bore Size
1-5/8"
Brand Name
Martin Sprocket & Gear
Bushing Series
P1
Measuring Units
Inch
Type
Split Taper Bushing
