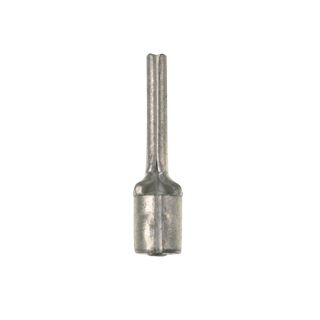

P10-P55-D PAN

Name: P10-P55-D PAN
Brand: Panduit
SKU: P10-P55-D PAN
Price: 0.65 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

P10-P55-D

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 6 days

Estimated dates are contingent upon manufacturer stock.

$0.65 / EA

Description

Brand Name

Panduit®

Type

Metallic Loose Piece Non-Insulated Standard

Description

Panduit®, P10-P55-D, Pin Terminal, Type P-P, Series: P Series, Solid/Stranded Copper Conductor, 4 to 6 sq-mm Conductor, Die Code: CT-100A/CT-200/CT-260/CT-1570/CT-2500, 0.11 in Pin Diameter, 0.55 in Pin Length, 2000 VAC, 0.15 in Dia Dimensions, 302 deg F, 0.79 in Overall Length, Metallic

Application

For pin type terminal blocks

Standards

ARRA Compliant | Buy American Act Compliant | cULus 587H File No. E52164 | RoHS Compliant | UL Listed

Features

Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
Brazed seam protects terminal barrel from splitting during the crimp process
Internal barrel serrations assure good wire contact and maximum tensile strength
Barrel of terminal internally beveled to provide quick and easy wire insertion

Specifications

Color:	Metallic
Conductor Size:	12 to 10 AWG
Conductor Type:	Solid/Stranded Copper
Country of Origin:	ID
Die Code:	CT-100A/CT-200/CT-260/CT-1570/CT-2500
Dimensions:	0.15 in Dia
Material:	Copper
Overall Length:	0.79 in
Pin Diameter:	0.11 in
Pin Length:	0.55 in
Series:	P Series
Specifications:	0.3 in L Wire Strip, 0.03 in Stock, Vinyl Insulation
Temperature Rating:	302 deg F
Voltage Rating:	2000 VAC
