P112-8MGT-20 GAT

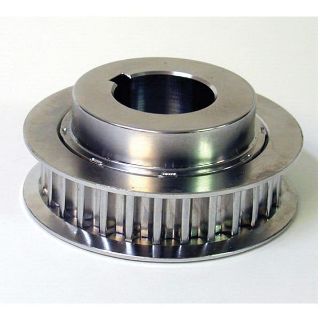

Picture of P112-8MGT-20 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
P112-8MGT-20
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$391.65 / EA

Description

Brand Name

Gates®

Description

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
Gates® PowerGrip® GT®2 Synchronous Sprocket, Series: 7708, Taper-Lock® Bore, 1/2 to 2-11/16 in Bore Dia, 11.181 in Outside Dia, 11.229 in, 112 Grooves, 8 mm Pitch, 1.13 in Face Width, 4.88 in Hub Dia, 2517 Bushing, 1-3/4 in Overall Length, For Use With: 20 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts, Gray Iron, Black Oxide

Features

  • Full split in bushing allows easy installation and removal
  • Precise sprocket design produces positive, press fit to shaft
  • Precision manufactured and static balanced
  • Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer

Specifications

Bore Diameter:1/2 to 2-11/16 in
Bore Type:Taper-Lock®
Bushing Type:2517
Country of Origin:US
Face Width:1.13 in
Finish:Black Oxide
Hub Diameter:4.88 in
Material:Gray Iron
Number of Grooves:112
Outside Diameter:11.181 in
Overall Length:1-3/4 in
Pitch:8 mm
Pitch Diameter:11.229 in
Series:7708
Suitable For Use With:20 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts

Products Specifications

Brand Name
Gates
