P14-6R-M PAN

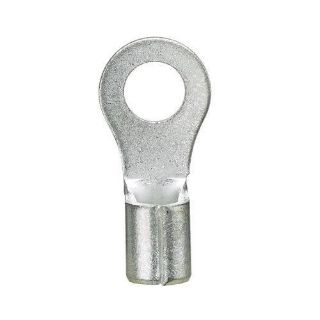

Picture of P14-6R-M PAN
Actual Product May Vary From Image

Product Details

Manufacturer:
Panduit
Manufacturer part number:
P14-6R-M
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$0.23 / EA

Description

Brand Name

Panduit®

Type

Type P-R

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.
Panduit®, P14-6R-M, Ring Terminal, Type P-R, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.62 in Length, Brazed Seam/Serrated/Standard Barrel, 0.9 in ID x 0.16 in OD Barrel, 0.25 in W x 0.03 in THK Tongue, 2000 VAC, Specifications: 9/32 in L Wire Strip, 0.2 in Clearance, 302 deg F, Copper, Tin Plated, Silver, 0.62 in L x 0.25 in W Dimensions

Application

For CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160 and CT-260 crimp tool

Standards

ARRA Compliant | Buy American Act Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | CT-100/CT-100A/CT-200/CT-570/CT-600-A/CT-1570/CT-2500/CT-160/CT-260 | RoHS Compliant | UL 486A/486B

Features

  • Expanded wire entry designed to accommodate wire with a larger insulation thickness
  • Ring tongue design assures a secure connection in high vibration applications
  • Insulation support helps to prevent wire damage in bending applications
  • Internal barrel serrations assure good wire contact and maximum tensile strength
  • Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Size:0.9 in ID x 0.16 in OD
Barrel Type:Brazed Seam/Serrated/Standard
Color:Silver
Conductor Size:14 AWG
Conductor Type:Solid/Stranded
Country of Origin:MX
Dimensions:0.62 in L x 0.25 in W
Finish:Tin Plated
Length:0.62 in
Material:Copper
Specifications:0.2 in Clearance, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:#6
Temperature Rating:302 deg F
Tongue Size:0.25 in W x 0.03 in THK
Tongue Type:Ring
Voltage Rating:2000 V
