P14-6RHT6-C PAN

Name: P14-6RHT6-C PAN
Brand: Panduit
SKU: P14-6RHT6-C PAN
Price: 0.79 USD
Availability: OutOfStock

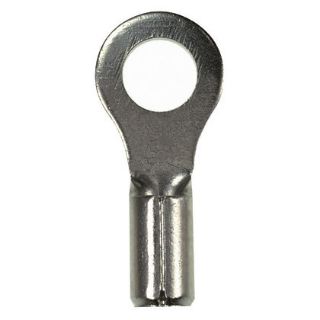

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

P14-6RHT6-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.79 / EA

Description

Brand Name

Panduit®

Type

Type P-RHT High Temperature

Description

Panduit®, P14-6RHT6-C, Ring Terminal, Type P-RHT High Temperature, Solid/Stranded Conductor, 16 to 14 AWG Conductor, #6 Stud, 0.62 in Length, Beveled Edge/Brazed Seam/Serrated/Standard Barrel, 0.09 in ID x 0.16 in OD Barrel, 0.25 in W x 0.03 in THK Tongue, 2000 VAC, Specifications: 9/32 in L Wire Strip, 0.2 in Clearance, 650 deg F, Copper, Tin Plated, Silver, 0.62 in L x 0.25 in W Dimensions

Application

For CT-100, CT-100A, CT-200, CT-570, CT-600-A, CT-1570, CT-2500, CT-160 and CT-260 crimp tool

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Insulation support helps to prevent wire damage in bending applications
Expanded wire entry designed to accommodate wire with a larger insulation thickness
Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Size:	0.09 in ID x 0.16 in OD
Barrel Type:	Beveled Edge/Brazed Seam/Insulation Support/Internal Serration/Standard
Color:	Silver
Conductor Size:	14 AWG
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Dimensions:	0.62 in L x 0.25 in W
Finish:	Tin Plated
Length:	0.62 in
Material:	Copper
Specifications:	0.2 in Clearance, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, Ring Shape Enclosure
Stud Size:	#6
Temperature Rating:	650 deg F
Tongue Size:	0.25 in W x 0.03 in THK
Tongue Type:	Ring
Voltage Rating:	2000 VAC
