P14-P47-C PAN

Name: P14-P47-C PAN
Brand: Panduit
SKU: P14-P47-C PAN
Price: 0.92 USD
Availability: OutOfStock

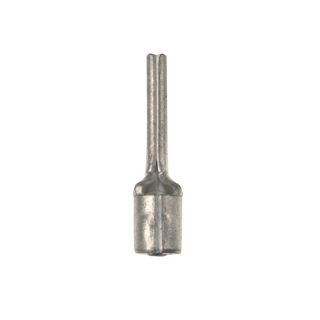

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

P14-P47-C

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$0.92 / EA

Description

Brand Name

Panduit®

Type

Metallic Loose Piece Non-Insulated Standard

Description

Panduit®, P14-P47-C, Pin Terminal, Metallic Loose Piece Non-Insulated Standard, Series: P-P, Solid/Stranded Conductor, 1.5 to 2.5 sq-mm Conductor, 0.07 in Pin Diameter, 0.49 in Pin Length, 2000 VAC, Specifications: 7.1 in L Wire Strip, Copper, 302 deg F, 3/4 in Overall Length

Application

For pin type terminal blocks

Standards

Features

Solid pin designed to prevent damage to the wire from over tightening, resulting in a reliable electrical connection
Brazed seam protects terminal barrel from splitting during the crimp process
Standard barrel configuration
Pin shape enclosure
Internal barrel serrations assure good wire contact and maximum tensile strength
Tin-plated finish
Standard barrel configuration, brazed seam barrel
Insulation support helps to prevent wire damage in bending applications
CT-100A, CT-260, CT-1550, CT-1551, CT-2500 recommended installation tools

Specifications

Barrel Length:	0.26 in
Conductor Size:	1.5 to 2.5 sq-mm
Conductor Type:	Solid/Stranded
Country of Origin:	MX
Material:	Copper
Overall Length:	3/4 in
Pin Diameter:	0.07 in
Pin Length:	0.49 in
Series:	P Series
Specifications:	0.3 in L Wire Strip, 0.03 in Stock
Temperature Rating:	302 deg F
Voltage Rating:	2000 VAC
