P144-8MGT-50 GAT

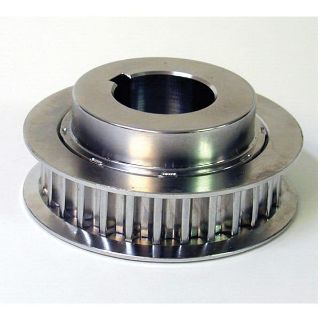

Picture of P144-8MGT-50 GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
P144-8MGT-50
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$880.50 / EA

Description

Brand Name

Gates®

Description

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
Gates® PowerGrip® GT®2 Synchronous Sprocket, Series: 7708, Taper-Lock® Bore, 7/8 to 3-1/4 in Bore Dia, 14.383 in Outside Dia, 14.437 in, 144 Grooves, 8 mm Pitch, 2.38 in Face Width, 7.38 in Hub Dia, 3020 Bushing, For Use With: 50 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts, Cast Iron

Features

  • Full split in bushing allows easy installation and removal
  • Precise sprocket design produces positive, press fit to shaft
  • Precision manufactured and static balanced
  • Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer

Specifications

Bore Diameter:7/8 to 3-1/4 in
Bore Type:Taper-Lock®
Bushing Type:3020
Country of Origin:US
Face Width:2.38 in
Hub Diameter:7.38 in
Material:Cast Iron
Number of Grooves:144
Outside Diameter:14.383 in
Pitch:8 mm
Pitch Diameter:14.437 in
Series:7708
Suitable For Use With:50 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts

Products Specifications

Brand Name
Gates
