P192 MAR

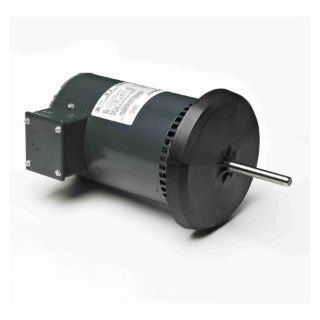

Picture of P192 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
5KCP36PNB523S
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® AC Motor, 6-Pole Continuous-Duty, Condenser Fan Motors Application, 0.6 hp, 200 to 230/460 VAC, 4.6 to 4/2 A, 60 Hz Frequency, 1 ph ph, 1075 rpm Speed, 1 Speed, Open Drip-Proof Enclosure, 48Z Frame, 0.63 in Dia x 4.23 in L Shaft, CW/CCW Rotation, 1 Service Factor, Ball Bearing, Round Belly Band Mounting, 60 deg C, Insulation Class: Class B, Rolled Steel, 12.65 in L x 7.6 in H Dimensions

Standards

CSA Certified | UL Listed

Features

  • Unique rain shield fits over shaft to protect motor in vertical shaft up position
  • Shaft with flat
  • Automatic reset thermal protection
  • Capacitor not included
  • Shaft slinger
  • Vertical shaft motor orientation
  • Permanent split capacitor

Specifications

Amperage Rating:4.6 to 4/2 A
Application Type:Condenser Fan Motors
Bearing Type:Ball
Country of Origin:MX
Dimensions:12.65 in L x 7.6 in H
Enclosure Type:Open Drip-Proof
Frame:48Z
Frequency Rating:60 Hz
Horsepower:0.6 hp
Insulation Class:Class B
Material:Rolled Steel
Mounting Type:Round Belly Band
Number of Speeds:1
Phase:1 ph
Rotation:CW/CCW
Service Factor:1
Shaft Size:0.63 in Dia x 4.23 in L
Speed:1075 rpm
Temperature Rating:60 deg C
Voltage Rating:200 to 230/460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
Drip Proof
Horsepower
3/5 HP
Speed Rating
878
Type
Permanent Split Capacitor
Voltage Rating
230/460 V
