P28-8MGT-50-MPB GAT

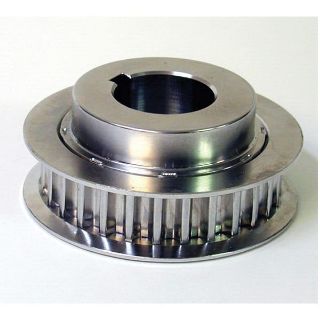

Picture of P28-8MGT-50-MPB GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
P28-8MGT-50-MPB
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$188.85 / EA

Description

Brand Name

Gates®

Description

PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
Gates® PowerGrip® GT®2 Synchronous Sprocket, Series: 7708, 1/2 to 1-1/2 in Bore Dia, 2.753 in Outside Dia, 2.807 in, 28 Grooves, 8 mm Pitch, 2.38 in Face Width, 3.207 in Flange Dia, 2.34 in Hub Dia, MPB Bushing, 3 in Overall Length, For Use With: 50 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts, Ductile Iron

Features

  • Full split in bushing allows easy installation and removal
  • Precise sprocket design produces positive, press fit to shaft
  • Precision manufactured and static balanced
  • Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer

Specifications

Bore Diameter:1/2 to 1-1/2 in
Bushing Type:MPB
Country of Origin:US
Face Width:2.38 in
Flange Diameter:3.207 in
Hub Diameter:2.34 in
Material:Ductile Iron
Number of Grooves:28
Outside Diameter:2.753 in
Overall Length:3 in
Pitch:8 mm
Pitch Diameter:2.807 in
Series:7708
Suitable For Use With:50 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts

Products Specifications

Brand Name
Gates
