P321 MAR

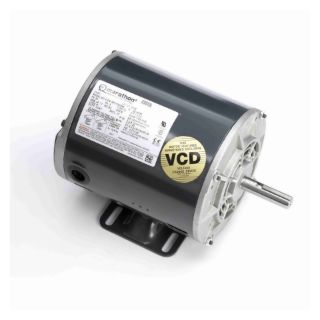

Picture of P321 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
213UTFS8076
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® AC Motor, 6-Pole Continuous-Duty, Automotive Motors Application, 2 hp, 460 VAC, 3.1 A, 60 Hz Frequency, 3 ph ph, 1175 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 213U Frame, 1.13 in Dia x 3.18 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 11.2 ft-lb Torque, Rigid Base Mounting, 65 deg C, Insulation Class: Class F, Cast Iron, 17.82 in L x 15.01 in W x 13.22 in H Dimensions

Standards

CE | CSA Certified | UL Listed

Features

Squirrel cage induction run

Specifications

Amperage Rating:3.1 A
Application Type:Automotive Motors
Bearing Type:Ball
Country of Origin:US
Dimensions:17.82 in L x 15.01 in W x 13.22 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:213U
Frequency Rating:60 Hz
Horsepower:2 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Phase:3 ph
Rotation:Reversible
Service Factor:1
Shaft Size:1.13 in Dia x 3.18 in L
Speed:1175 rpm
Temperature Rating:65 deg C
Torque Rating:11.2 ft-lb
Voltage Rating:460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
TEFC
Horsepower
2 HP
Speed Rating
1175
Type
Squirrel Cage Induction Run
Voltage Rating
460V
