P328M30-H MSG

Name: P328M30-H MSG
Brand: Martin Sprocket & Gear
SKU: P328M30-H MSG
Price: 127.38 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

P328M30-H

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$127.38 / EA

Description

Brand Name

Martin

Type

Solid Type BF-1

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.

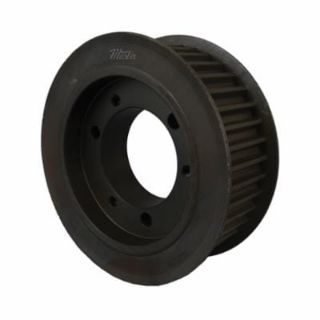

Martin HTS® High Torque Belt Drive Sprocket, Solid Type BF-1, QD® Bushed Bore, 3/8 to 1-1/2 in Bore Dia, 3.154 in Outside Dia, 3.208 in, 32 Grooves, 8 mm Pitch, 7/8 in Face Width, 3.562 in Flange Dia, H Bushing, 1-1/2 in Overall Length, Steel

Application

Agitators, Mixers, Compressors, Conveyors, Blowers, Machine Tools, Pumps, Laundry, Paper, Textile, Woodworking and Brick and Clay Machinery Applications

Features

Positive slip proof engagement
Constant driven speeds
High tension eliminated
High mechanical efficiency
Economical operation
No lubrication needed
Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:	3/8 to 1-1/2 in
Bore Type:	QD® Bushed
Bushing Type:	H
Country of Origin:	US
Face Width:	7/8 in
Flange Diameter:	3.562 in
Material:	Steel
Number of Grooves:	32
Outside Diameter:	3.154 in
Overall Length:	1-1/2 in
Pitch:	8 mm
Pitch Diameter:	3.208 in
