P4-38R-E PAN

Name: P4-38R-E PAN
Brand: Panduit
SKU: P4-38R-E PAN
Price: 3.38 USD
Availability: OutOfStock

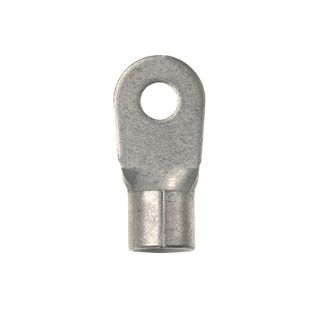

Actual Product May Vary From Image

Product Details

Manufacturer:

Panduit

Manufacturer part number:

P4-38R-E

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$3.38 / EA

Description

Brand Name

Panduit®

Type

Non-Insulated

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit®, P4-38R-E, Ring Terminal, Type P-R, Stranded Conductor, 4 AWG Conductor, 3/8 in Stud, 1.46 in Length, Brazed Seam/Standard Barrel, 0.29 in ID x 0.39 in OD Barrel, 0.68 in W x 0.05 in THK Tongue, 2000 VAC, Specifications: 1/2 in L Wire Strip, 1/2 in Clearance, 302 deg F, Copper, Tin Plated, Metallic, 1.46 in L x 0.68 in W Dimensions

Application

High Vibration Applications

Standards

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Insulation support helps to prevent wire damage in bending applications
Brazed seam protects terminal barrel from splitting during the crimp process

Specifications

Barrel Size:	0.29 in ID x 0.39 in OD
Barrel Type:	Brazed Seam/Standard
Color:	Metallic
Conductor Size:	4 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	1.46 in L x 0.68 in W
Finish:	Tin Plated
Length:	1.46 in
Material:	Copper
Series:	P-R Series
Specifications:	1/2 in L Wire Strip, 1/2 in Clearance
Stud Size:	3/8 in
Temperature Rating:	302 deg F
Tongue Size:	0.68 in W x 0.05 in THK
Tongue Type:	Ring
Voltage Rating:	2000 V
