P433 MAR

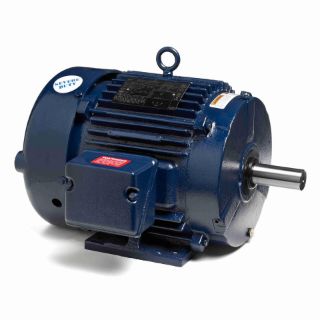

Picture of P433 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
256UTFNA4076
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,879.37 / EA

Description

Brand Name

Marathon®

Type

6-Pole Continuous-Duty

Description

Marathon® AC Motor, 6-Pole Continuous-Duty, 7.5 hp, 460 VAC, 9.9 A, 60 Hz Frequency, 3 ph, 1175 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 256U Frame, 1.38 in Dia x 3.94 in L Shaft, Reversible Rotation, 1 Service Factor, Ball Bearing, 42 ft-lb Torque, Rigid Base Mounting, 65 deg C, Insulation Class: Class F, Cast Iron, 24.93 in L x 19.35 in W x 16.63 in H Dimensions

Standards

CE | CSA Certified | UL Listed

Features

  • NEMA design B
  • Oversized fully gasketed cast iron conduit box
  • V-ring shaft seals
  • Horizontal motor orientation
  • Squirrel cage induction run
  • Cast iron construction
  • Oversized ball bearings
  • Class F insulation

Specifications

Amperage Rating:9.9 A
Bearing Type:Ball
Country of Origin:US
Dimensions:24.93 in L x 19.35 in W x 16.63 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:256U
Frequency Rating:60 Hz
Horsepower:7.5 hp
Insulation Class:Class F
Material:Cast Iron
Mounting Type:Rigid Base
Number of Speeds:1
Phase:3
Rotation:Reversible
Service Factor:1
Shaft Size:1.38 in Dia x 3.94 in L
Speed:1175 rpm
Temperature Rating:65 deg C
Torque Rating:42 ft-lb
Voltage Rating:460 VAC

Products Specifications

Brand Name
Marathon
Enclosure
TEFC
Horsepower
7 1/2 HP
Speed Rating
1175
Type
Squirrel Cage Induction Run
Voltage Rating
460V
