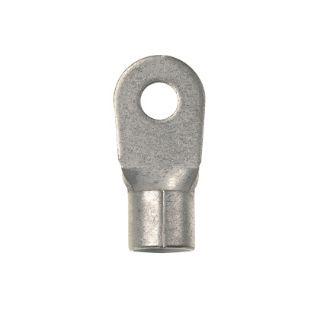

Actual Product May Vary From Image

P6-14R-E PAN

Name: P6-14R-E PAN
Brand: Panduit
SKU: P6-14R-E PAN
Price: 2.45 USD
Availability: InStock

Panduit® P6-14R-E Type P-R Ring Terminal, 6 AWG Conductor, 1.21 in L, Brazed Seam/Standard Barrel, Copper, Metallic

Manufacturer: Panduit

Manufacturer part number: P6-14R-E

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
40	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.45

Qty:

Product Details

Brand Name

Panduit®

Type

Type P-R

Description

Panduit®, P6-14R-E, Ring Terminal, Type P-R, Stranded Conductor, 6 AWG Conductor, 1/4 in Stud, 1.21 in Length, Brazed Seam/Standard Barrel, 0.23 in ID x 0.32 in OD Barrel, 0.47 in W x 0.045 in THK Tongue, 2000 VAC, Specifications: 7/16 in L Wire Strip, 0.43 in Clearance, 302 deg F, Copper, Tin Plated, Metallic, 1.21 in L x 0.47 in W Dimensions

Standards

Features

Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
Fork design provides for fast and easy installation, without the need to remove fastener
Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength

Specifications

Barrel Size:	0.23 in ID x 0.32 in OD
Barrel Type:	Brazed Seam/Standard
Color:	Metallic
Conductor Size:	6 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	1.21 in L x 0.47 in W
Finish:	Tin Plated
Length:	1.21 in
Material:	Copper
Specifications:	0.43 in Clearance, 0.46 in Mounting Hole Size, 7/16 in L Wire Strip, Ring Shape Enclosure
Stud Size:	1/4 in
Temperature Rating:	302 deg F
Tongue Size:	0.47 in W x 0.045 in THK
Tongue Type:	Ring
Voltage Rating:	2000 V
