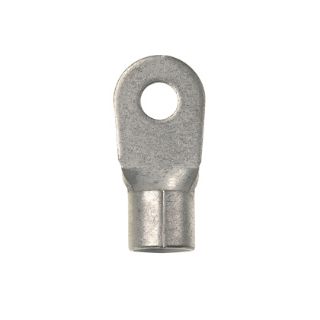

Actual Product May Vary From Image

P6-38R-E PAN

Name: P6-38R-E PAN
Brand: Panduit
SKU: P6-38R-E PAN
Price: 2.50 USD
Availability: InStock

Panduit® P6-38R-E Type P-R Large Wire Loose Piece Non-Insulated Ring Terminal, 6 AWG Conductor, 1.33 in L, Brazed Seam/Standard Barrel, Metallic

Manufacturer: Panduit

Manufacturer part number: P6-38R-E

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$2.50

Qty:

Product Details

Brand Name

Panduit®

Type

Non-Insulated

Description

Panduit® Pan-Term® terminals are designed and manufactured for fast assembly and reliable performance. Panduit® provides an extensive line of tooling designed specifically to provide optimum performance. As the demand for loose piece terminals increases, it becomes essential to provide a complete system for termination products.

Panduit®, P6-38R-E, Ring Terminal, Type P-R Large Wire Loose Piece Non-Insulated, Stranded Copper Conductor, 6 AWG Conductor, 3/8 in Stud, 1.33 in Length, Brazed Seam/Standard Barrel, 0.32 in OD Barrel, 0.62 in W x 0.05 in THK Tongue, 2000 VAC, Specifications: 0.43 in L Wire Strip, Non-Expanded Insulation, 302 deg F, Tin Plated, Metallic, 1.33 in L x 0.62 in W Dimensions

Application

High Vibration Applications

Standards

ARRA Compliant | Buy American Act Compliant | CSA C22.2 File No. 65 | RoHS Compliant | UL 486A/486B

Features

Ring tongue design assures a secure connection in high vibration applications
Internal barrel serrations assure good wire contact and maximum tensile strength
Brazed seam protects terminal barrel from splitting during the crimp process
Barrel of terminal internally beveled to provide quick and easy wire insertion

Specifications

Barrel Size:	0.23 in ID x 0.32 in OD
Barrel Type:	Brazed Seam/Internal Serration/Standard
Color:	Metallic
Conductor Size:	6 AWG
Conductor Type:	Stranded
Country of Origin:	MX
Dimensions:	1.33 in L x 0.62 in W
Finish:	Tin Plated
Length:	1.33 in
Material:	Copper
Series:	P-R Series
Specifications:	0.43 in L Wire Strip, Non-Expanded Insulation
Stud Size:	3/8 in
Temperature Rating:	302 deg F
Tongue Size:	0.62 in W x 0.05 in THK
Tongue Type:	Ring
Voltage Rating:	2000 V
