PA3316YG BOS

Name: PA3316YG BOS
Brand: Boston Gear
SKU: PA3316YG BOS
Price: 119.32 USD
Availability: OutOfStock

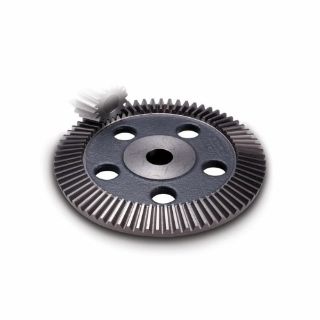

Actual Product May Vary From Image

Product Details

Manufacturer:

Boston Gear

Manufacturer part number:

PA3316Y-G

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$119.32 / EA

Description

Brand Name

Boston Gear®

Type

Straight Tooth

Description

Boston bevel gears are designed for the transmission of motion and power between two intersecting shafts positioned at a right angle. Bevel gears are similar to miter gears except bevel gears are used for 1.5:1 to 6:1 ratios. Straight tooth bevel gears are cut with a generated "coniflex" tooth form providing increased life and quieter operating conditions. Spiral tooth bevel gears are better suited for higher speeds and high torque applications.

Boston Gear® Bevel Gear, Straight Tooth, Series: PA Series, Bevel Gear, 5/8 in Bore, 3.02 in OD, 3:1 Gear Ratio, 48 Teeth, 16 Diametral Pitch, 3 in Pitch Diameter, 0.42 in Face Width, 1-1/2 in Diameter Hub, 0.56 in Hub Projection, 20 deg Pressure Angle, Cast Iron

Application

For use with 90 deg intersecting shaft

Standards

PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.

Features

Without keyway or set screws

Specifications

Bore Diameter:	5/8 in
Country of Origin:	US
Diametral Pitch:	16
Face Width:	0.42 in
Gear Ratio:	3:1
Gear Type:	Bevel
Hub Diameter:	1-1/2 in
Hub Projection:	0.56 in
Material:	Cast Iron
Number of Teeth:	48
Outside Diameter:	3.02 in
Pitch Diameter:	3 in
Pressure Angle:	20 deg
Series:	PA Series
