PB22427H LBB

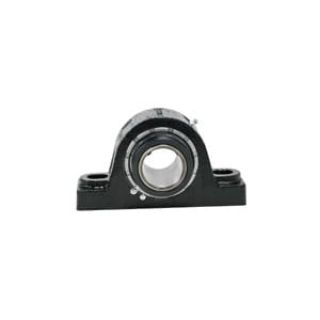

Link-Belt® PB22427H B22400 Pillow Block Spherical Roller Bearing, 1-11/16 in Dia Bore, 5-1/2 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 7-1/8 in OAL x 4-1/4 in OAH
Manufacturer: Rexnord
Manufacturer part number: PB22427H
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
2 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$410.52

Product Details

Brand Name

Link-Belt®

Description

Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
Link-Belt® Pillow Block Spherical Roller Bearing, Series: B22400, 1-11/16 in Bore, 5-1/2 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-1/8 in Overall Length, 3-1/8 in Overall Width, 4-1/4 in Overall Height, Two-Bolt Base Mounting, Round Bore, 2-1/2 in Base Width, Single Set Screw Collar Locking Device, Clearance/Floating Labyrinth Seal, Non-Expansion (Fixed) Expansion, 24700 lb Dynamic/28700 lb Static Load, 225 deg F, 3100 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction and Package Handling Industries

Standards

ANSI/ABMA STD 11

Features

  • Spring locking collar locks inner ring securely to shaft
  • Long inner ring for high stability and load support
  • Self aligning double row
  • Double contoured retainer pockets
  • Slotted bolt holes in pillow block
  • Extended inner ring, separable outer rings
  • Misalignment capabilities total of 4 deg
  • Factory set clearance and lubrication
  • Field interchangeable seals

Specifications

Base to Bore Centerline:2-1/8 in
Base Width:2-1/2 in
Bolt Center-to-Center Length:5-1/2 in
Bore Diameter:1-11/16 in
Bore Type:Round
Expansion Type:Non-Expansion (Fixed)
Finish:Powder Coated
Load Capacity:24700 lb Dynamic/28700 lb Static
Locking Device:Single Set Screw Collar
Material:Cast Iron
Maximum Speed:3100 rpm
Mounting Type:Two-Bolt Base
Overall Height:4-1/4 in
Overall Length:7-1/8 in
Overall Width:3-1/8 in
Seal Type:Clearance/Floating Labyrinth
Series:B22400
Temperature Rating:225 deg F
