PB22547FE LBB

Name: PB22547FE LBB
Brand: Rexnord
SKU: PB22547FE LBB
Availability: OutOfStock

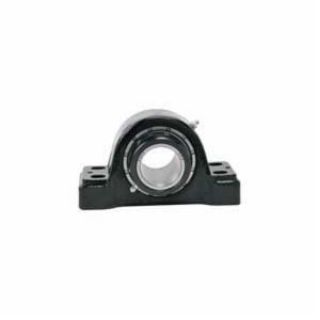

Actual Product May Vary From Image

Product Details

Manufacturer:

Rexnord

Manufacturer part number:

PB22547FE

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Link-Belt®

Type

Solid Housed

Description

Self-aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.

Link-Belt® Pillow Block Spherical Roller Bearing Unit, Solid Housed, Series: B22500, 2-15/16 in Bore, 9-3/4 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 12-5/8 in Overall Length, 4-7/8 in Overall Width, 6-15/16 in Overall Height, Four-Bolt Base Mounting, 4-3/4 in Base Width, Double Set Screw Collar Locking Device, Spring-Loaded/Heavy Contact Seal, Non-Expansion (Fixed) Expansion, 41800 lb Dynamic/71500 lb Static Load, 225 deg F, 1500 rpm Maximum, Cast Iron, Powder Coated

Application

Mining, Forest Products, Aggregates, Steel, Air Handling, Construction, Package Handling and Wastewater Treatment

Standards

ANSI/ABMA STD 9-1990

Features

Long inner ring for high stability and load support
Spherical roller bearing allows for +/- 2 deg of misalignment to accommodate variations between shaft and support structure as well as shaft deflection during operation
Double contoured retainer pockets
Slotted bolt holes in pillow block
Pre-lubricated and do not require bearing adjustment during mounting
Corrosion resistant
Spherical roller bearing extended inner ring separable outer rings

Specifications

Base to Bore Centerline:	3-1/2 in
Base Width:	4-3/4 in
Bolt Center-to-Center Length:	9-3/4 in
Bore Diameter:	2-15/16 in
Country of Origin:	US
Expansion Type:	Non-Expansion (Fixed)
Finish:	Powder Coated
Load Capacity:	41800 lb Dynamic/71500 lb Static
Locking Device:	Double Set Screw Collar
Material:	Cast Iron
Maximum Speed:	1500 rpm
Mounting Type:	Four-Bolt Base
Overall Height:	6-15/16 in
Overall Length:	12-5/8 in
Overall Width:	4-7/8 in
Seal Type:	Spring-Loaded/Heavy Contact
Series:	B22500
Temperature Rating:	225 deg F
