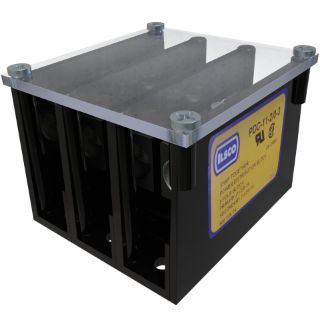

PDC-11-2/0-3 ILS

Name: PDC-11-2/0-3 ILS
Brand: Ilsco Corporation
SKU: PDC-11-2/0-3 ILS
Price: 88.50 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Ilsco Corporation

Manufacturer part number:

PDC-11-2/0-3

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$88.50 / EA

Description

Brand Name

ILSCO®

Type

Type PDC

Description

ILSCO® ClearChoice® Power Distribution Block, Type PDC, 600 VAC, 175 A, 3 Pole, 1 Primary Connections/Pole, 1 Secondary Connection/Pole, 14 to 2/0 AWG Wire, 10 kA Short Circuit Current Rating, Aluminum, Electro-Plated Tin, Black

Application

For use with tap connector

Standards

CSA File No. LR-29601 | UL 1953 | E84782 | PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov

Features

Dual rated for aluminum and copper conductor except for pdbu-55-600-1 and pdb-55-600-1 rated for copper wire only
Small size
90 deg C temperature rating
Manufactured from high strength 6061-T6 aluminum alloy
Lexan® insulating base
Lexan® is a registered trade name of the General Electric Company
PDA's are added to PDC to obtain a Multi Pole Block
Hex size primary 3/16 in x Hex size secondary 3/16 in
(1) box lug primary, (1) box lug secondary
14 to 2/0 AWG primary and secondary wire size

Specifications

Amperage Rating:	175 A
Color:	Black
Country of Origin:	MX
Finish:	Electro-Plated Tin
Material:	Aluminum
Number of Poles:	3
Primary Connections/Pole:	1
Secondary Connection/Pole:	1
Short Circuit Current Rating:	10 kA
Voltage Rating:	600 VAC
Wire Size:	14 to 2/0 AWG
