Home / PEU335 LBB

PEU335 LBB

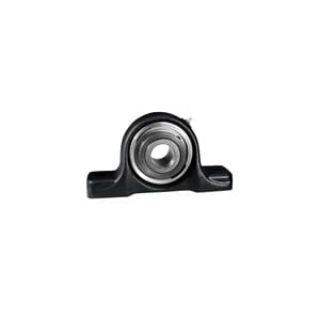

Picture of PEU335 LBB
Actual Product May Vary From Image

Product Details

Manufacturer:
Rexnord
Manufacturer part number:
PEU335
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,139.82 / EA

Description

Brand Name

Link-Belt®

Type

Heavy Duty

Description

300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and/or high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans, blowers, heavier duty power transmission and material handling equipment.
Link-Belt® Pillow Block Ball Bearing, Heavy Duty, Series: 300, 2-3/16 in Bore, 10-1/4 in Bolt Center-to-Center Length, 3-1/2 in Base to Bore Centerline, 12-5/8 in Overall Length, 3-1/16 in Overall Width, 6-13/16 in Overall Height, Two-Bolt Base Mounting, Round Bore, 3-3/8 in Base Width, Set Screw Locking Device, Clearance Seal, Expansion Expansion, 16070 lb Dynamic/1000 lb Static Load, 225 deg F, 4950 rpm Maximum, Cast Iron, Powder Coated

Application

Aggregates, Air Handling, Forestry, Mining, Steel and Package Handling Industries

Standards

ANSI/ABMA STD 9

Features

  • Provides a cool running, quiet, high-speed and high-load capacity bearing
  • Wide inner ring is for greater contact surface between shaft and bearing
  • Case carburized inner ring resists fracture under shock and heavy loads
  • Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
  • Compact, 1-piece cast iron housings provide strength with minimum size and weight and excellent rigidity
  • Standard backing
  • Bearing sealed unit
  • Alignable and relubricatable
  • Steel clad clearance seal

Specifications

Base to Bore Centerline:3-1/2 in
Base Width:3-3/8 in
Bolt Center-to-Center Length:10-1/4 in
Bore Diameter:2-3/16 in
Bore Type:Round
Expansion Type:Expansion
Finish:Powder Coated
Load Capacity:16070 lb Dynamic/1000 lb Static
Locking Device:Set Screw
Material:Cast Iron
Maximum Speed:4950 rpm
Mounting Type:Two-Bolt Base
Overall Height:6-13/16 in
Overall Length:12-5/8 in
Overall Width:3-1/16 in
Seal Type:Clearance
Series:300
Temperature Rating:225 deg F
