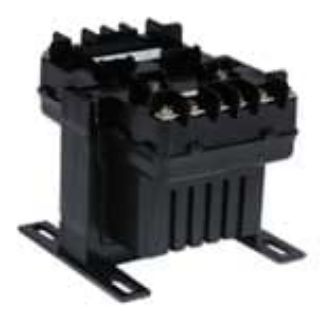

PH500MGJ HMD

Name: PH500MGJ HMD
Brand: Hammond Power Solutions
SKU: PH500MGJ HMD
Price: 295.62 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hammond Power Solutions

Manufacturer part number:

PH500MGJ

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$295.62 / EA

Description

Brand Name

HPS

Type

Industrial Molded Open Style

Description

The HPS Imperator® series of machine tool rated industrial control transformers are specifically designed to meet the high inrush industrial applications where electromagnetic components such as relays, solenoids and magnetic motor starters are used. The HPS Imperator® unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32 x 1 1/2 midget/type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

HPS Imperator® Control Transformer, Industrial Molded Open Style, 120/240 VAC Secondary, 500 VA Power, 50/60 Hz Frequency, 1 ph, 4.17/2.08 A Maximum, Screw Connection, Panel Mounting, 130 deg C Insulation, 30 deg C, 4.75 in L x 6.69 in W x 4.31 in H Dimensions

Application

Automation, Panel Shops, Machines, Panel Boards, Solenoids, Control and Timer Applications

Standards

UL Listed | cULus Listed | RoHS Compliant

Features

Constructed with high quality silicon steel laminations that provide optimum performance and reliability
Encapsulated coils encased in a custom injection molded cover, protect coils and terminations from moisture, dirt and other industrial airborne contaminants
Mounting feet made of heavy steel and welded or bolted to the core, these mounting feet provide superior strength in a compact design
Combination slot/Philips #6 screw, complete with SEMS washer termination
Optional finger safe terminal covers available on all units
Terminal connection numbers molded into terminal block and correspond to nameplate and wiring diagrams, make connecting the HPS Imperator quick and simple
SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
Innovative terminal block design provides for easy hook-up and installation of fuse clip
Custom injection molded coil cover with its unique "fin shaped" design combine superior cooling properties with a clean, bold look
380/277/208 V primary volt
Encapsulated copper wound coils encased in a custom injection molded cover
Secondary fuse clips, fuse clip mounting screws and primary and secondary voltage links/jumpers supplied with transformers
40 deg C maximum

Specifications

Connection Type:	Screw
Country of Origin:	CN
Dimensions:	4.75 in L x 6.69 in W x 4.31 in H
Frequency Rating:	50/60 Hz
Insulation:	130 deg C
Maximum Amperage Rating:	4.17/2.08 A
Mounting Type:	Panel
Phase:	1
Power Rating:	500 VA
Secondary Voltage:	120/240 VAC
Temperature Rating:	30 deg C
