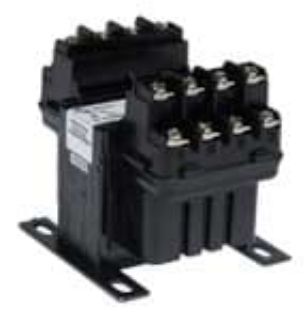

PH50PG-FK HMD

Name: PH50PG-FK HMD
Brand: Hammond Power Solutions
SKU: PH50PG-FK HMD
Price: 102.64 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Hammond Power Solutions

Manufacturer part number:

PH50PG-FK

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

$102.64 / EA

Description

Brand Name

HPS

Type

Dry Type Encapsulated Machine Tool Rated Molded

Description

The HPS Imperator® series of machine tool rated industrial control transformers are specifically designed to meet high inrush industrial applications where electromagnetic components such as relay, solenoids and magnetic motor starters are used. With 11 standard voltage groups, a VA range from 50 VA to 1500 VA and available with standard secondary and optional primary fuse kits, the HPS Imperator® series provides the perfect solution for any application. The HPS Imperator® unique terminal block design allows for the quick and easy installation of standard secondary or optional primary 13/32 x 1-1/2 in midget/Type CC fuse clips on every unit. This is the simplest and most inexpensive fusing installation provided on any industrial control transformer in the market today.

HPS Imperator® Control Transformer, Dry Type Encapsulated Machine Tool Rated Molded, 120/240 VAC Primary, 12/24 VAC Secondary, 50 VA, 50/60 Hz, 1 ph, 4.17/2.08 A Maximum, Terminal Block, Panel Mount, 105 deg C, Open/Core and Coil, 30 to 40 deg C, 3.19 in H x 3 in W x 4.38 in D

Application

Industrial, Automation, Panel shops, Machines, Solenoids, Timers and Control Applications

Standards

RoHS Compliant | UL/cULus Listed | CSA/CE Marking | REACH Compliant

Features

600 VAC Class, machine tool rated industrial control transformers
Standard SEMS washers supplied on all units excluding PH750PH, PH1000PG, PH750MLI, PH1000MLI
Termination connection numbers molded into the terminal block for simple identification
SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
Custom injection molded coil cover with its unique "fin shaped" design combines superior cooling properties with a clean, bold look
Potted control transformer for high inrush applications powering coils

Includes

Primary and Secondary Fuse Clips

Specifications

Connection Type:	Terminal Block
Country of Origin:	CN
Dimensions:	3.19 in H x 3 in W x 4.38 in D
Enclosure Type:	Open/Core and Coil
Frequency Rating:	50/60 Hz
Insulation:	105 deg C
Maximum Amperage Rating:	4.17/2.08 A
Mounting Type:	Panel
Phase:	1 ph
Power Rating:	50 VA
Primary Voltage:	120/240 VAC
Secondary Voltage:	12/24 VAC
Temperature Rating:	30 to 40 deg C
