Actual Product May Vary From Image

PL035X060 UST

Name: PL035X060 UST
Brand: US Tsubaki
SKU: PL035X060 UST
Price: 83.48 USD
Availability: OutOfStock

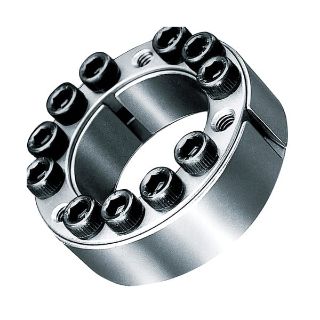

Tsubaki® Power-Lock® PL035X060 AS Series Multi-Purpose Keyless Locking Device, 35 mm Dia Bore, 60 mm OD, 26 mm OAL, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: PL035X060

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$83.48

Qty:

Product Details

Brand Name

Tsubaki®

Type

Multi-Purpose

Description

The Tsubaki® Power-Lock® has been highly acclaimed since its introduction into the locking device market. It carries many attractive features and comes in a wide range of models that meet the needs of customers.

Tsubaki® Power-Lock® Keyless Locking Device, Multi-Purpose, Series: AS Series, 35 mm Bore Dia, 60 mm Outside Dia, 745 N-m Transmissible Torque, 42.1 kN Transmissible Thrust, 181 MPa Shaft Contact, 106 MPa Hub Contact, M6 x 18 Screw, 26 mm Overall Length, -30 to 200 deg C, Carbon Steel, Uncoated

Standards

RoHS Compliant

Features

Most popular series world-wide
Easy machining of shaft and hub
Can use on shafts with keyway
Low machining costs
Easy to install

Specifications

Bore Diameter:	35 mm
Country of Origin:	CN
Finish:	Uncoated
Hub Contact Pressure:	106 MPa
Material:	Carbon Steel
Outside Diameter:	60 mm
Overall Length:	26 mm
Screw Size:	M6 x 18
Series:	AS Series
Shaft Contact Pressure:	181 MPa
Temperature Rating:	-30 to 200 deg C
Transmissible Thrust:	42.1 kN
Transmissible Torque:	745 N-m
